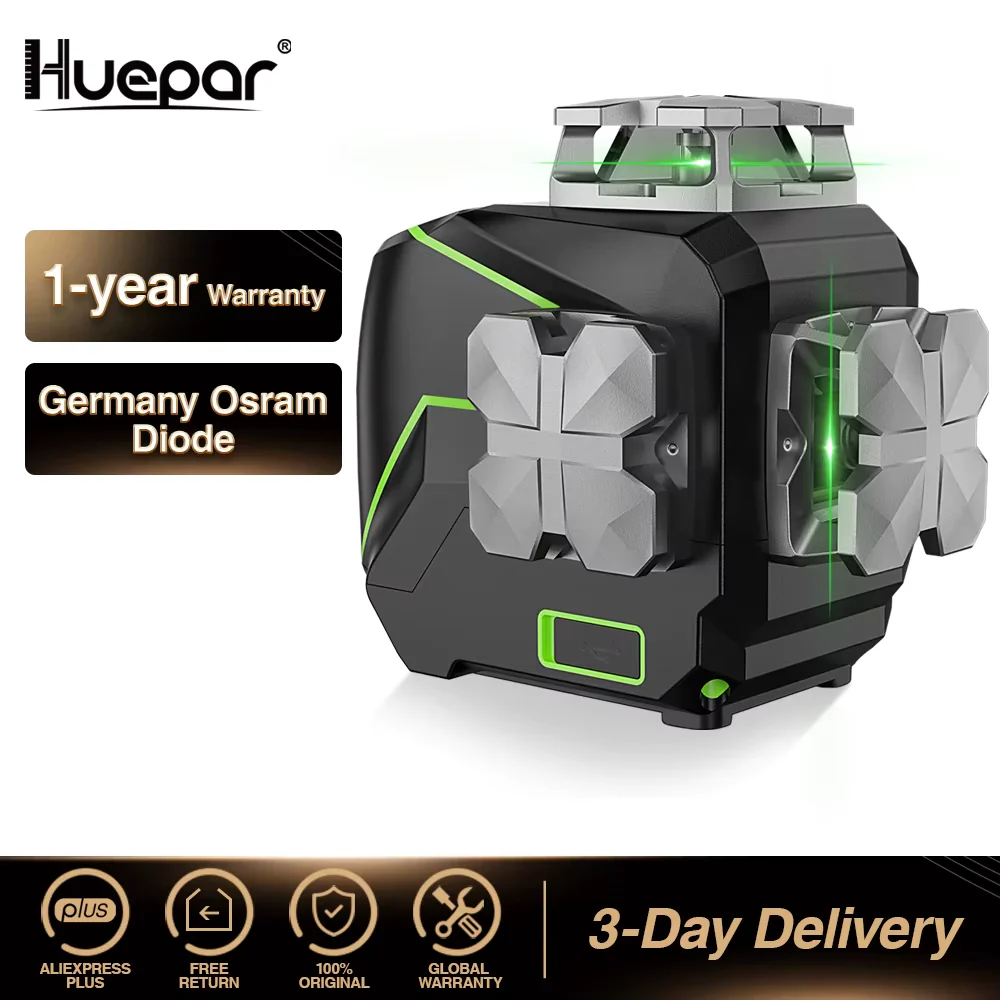

Huepar 8 Lines Cross Laser Level Green Beam Self-leveling Manual Level Tools with Metal Cover & USB Charger / Dry Li-ion Battery

Product Description:

Huepar S02CG 8 Lines Green Laser Level Specifications:

• Laser Beam: Green Beam

• Projection: 8 Green Laser Lines

• Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output

• Laser Wavelength: Germany Osram 505nm-520nm

• Horizontal / Vertical Accuracy: ±3mm/10m

• Leveling / Compensation Range: 3.5°±1°

• Leveling Time: ≤3s

• Windows Cover: Use Metail Glass Windows Covers

• Working Distance: ≥20m, ≥40m with detector

• Working Time: About 8 hours with li-ion battery, About 2 hours with AA battery

• Power Source:7.4V / 2600mAh Li-ion battery & 4 x AA battery

• Mount Size: 1/4"-20 & 5/8''-11

• IP Rating: IP54, waterproof, dustproof and shockproof, reliability and robustness

• Operating Temperature: Between -10℃ and +50℃

• Storage temperature: Between -20℃ and +70℃


WARNING:

● Do not point the laser beam directly into the eyes.

Package Contents:

1 x Green Laser Level S02CG

1 x Wall Hanging Plate

1 x Multifunctional Pivoting Base

1 x 2600mAh Li-ion Battery

1 x Green Target Plate

1 x Power Adapter Type-C cord

1 x AA Battery Compartment

4 x AA battery ( AA battery is not included if ships from China)

1 x User Manual

1 x Soft bag

Line Switching:

Self-leveling mode:

Once the pendulum unlocked, self-leveling mode is enabled.

The laser beam will beep as well as the laser beam blink fast when the tool is out of self-leveling range ±4°.

Manual mode:

When the pendulum locked, the laser tool can be placed for use at any angle.

The laser beam will blink every 3-5 seconds to remind you it's not self-leveling now.

Imported Germany Osram Diode:

The laser device uses for imported Germany Osram diode, improve the accuracy and extend the working distance than other brand diode.

Durable Metal Laser Windows: It can be used in any harsh construction working environments. The laser windows can be removed and replaced by a screwdriver

Pulse Mode:

Turn ON pulse mode: Turn on the laser tool, short press power button to switch to Pulse Mode. The laser beams are dimmer in pulse mode.

Pulse mode extends the working range up to 200Ft. in brighter working conditions when using with Huepar Line Laser Receiver.

It is compatible with Huepar LR-6RG&LR-5RG Line Laser Receiver only.

Diverse Power Supply:

Large-capacity li-ion battery: 8 hours of extra-long working

AA battery: 4x AA battery for 2h usage

Direct input charging: This laser tool can be used at job site with direct input charging even if take out the battery.

Charging protection help prevent the tool from overcharge.

Multiple Installation Method:

Strong Magnetic Pivoting Base: Allows for attachment to metal track and steel，supporting you to turn the laser level around at 360 degree , projecting lines at any angle.

Mount Size: 1/4"-20 / 5/8"-11 mounting thread for temporarily fastening in place or being fixed on tripod.

With Target plate, which will enhance the green beam when you operate the devcie.

Beep as a reminder:

Laser tool will beep as a reminder when it is out of self-leveling range ±3.5°.
